Plans and Elevations (C) WORKSHEET
Suitable for Year groups: Year 8, Year 9
GCSE Tier: Foundation/Higher
Targeting grades: 4-5
Prerequisite knowledge: Drawing 2D shapes, scale drawing
Learning Objective: Construct and interpret plans and elevations of 3D shapes.
Plans and Elevations (C) WORKSHEET DESCRIPTION

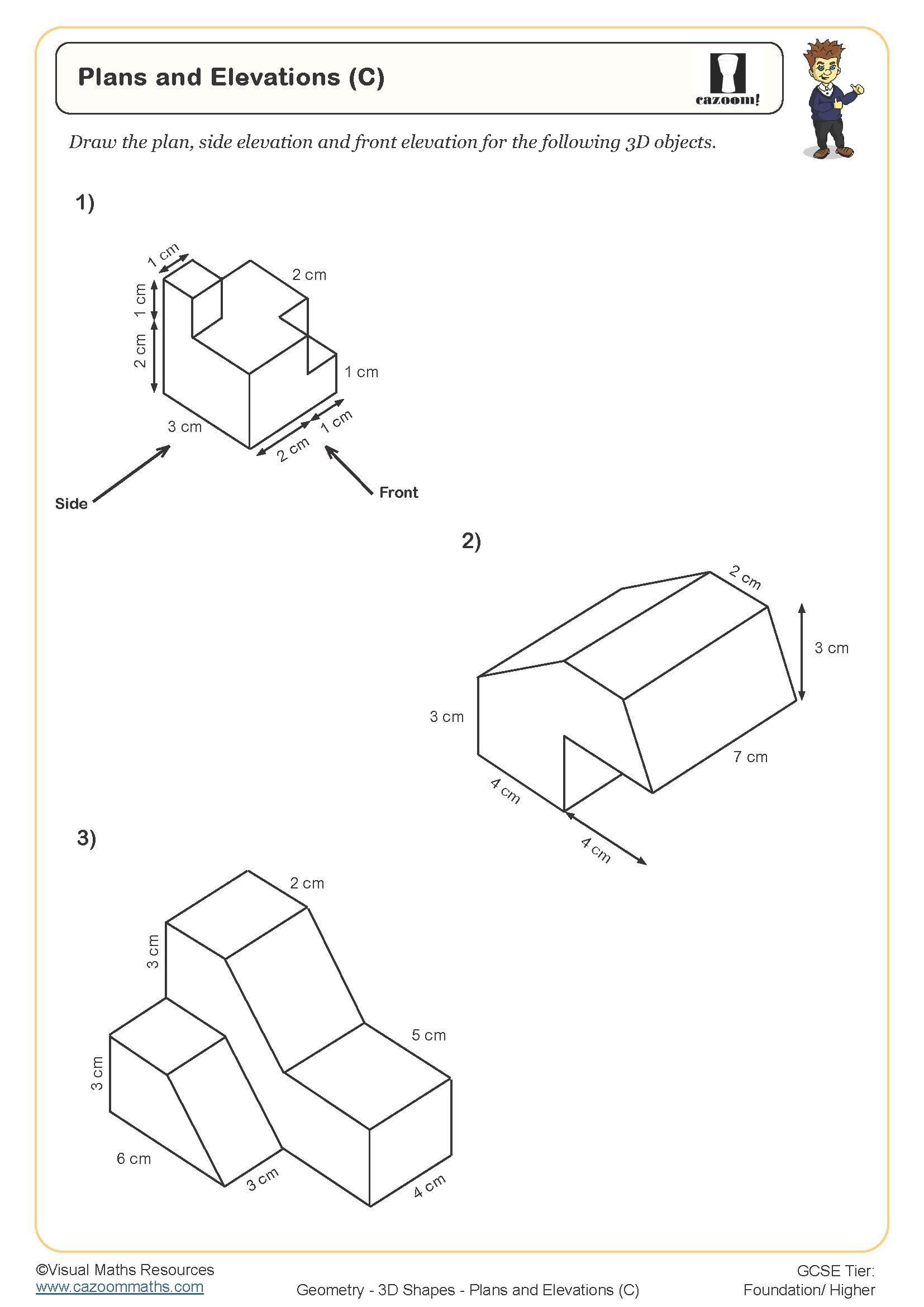

Following on from the worksheets Plans and Elevations (A) and Plans and Elevations (B), this worksheet provides images of three more complicated compound 3D objects and asks learners to produce scale drawings of their plans, side and front elevations. 1 cm grids are provided on two extra pages.
All worksheets are created by the team of experienced teachers at Cazoom Maths.
RELATED TO Plans and Elevations (C) WORKSHEET
Frequently Asked Questions
This worksheet is designed for Year 8 and Year 9 students who are developing their spatial reasoning skills. It's particularly useful for pupils working towards GCSE Foundation or Higher tier examinations, as it builds on fundamental 3D visualisation concepts.
