Plan and Elevations - Using Cubes (C) WORKSHEET

Suitable for Year groups: Year 10
GCSE Tier: Foundation/Higher
Targeting grades: 4-5
Prerequisite knowledge: Drawing plans and elevations of 3D shapes.
Learning Objective: Construct and interpret plans and elevations of 3D shapes.

Plan and Elevations - Using Cubes (C) WORKSHEET DESCRIPTION

The focus of this worksheet is to enable students to draw 3D shapes made out of cubes from their plans and elevations.

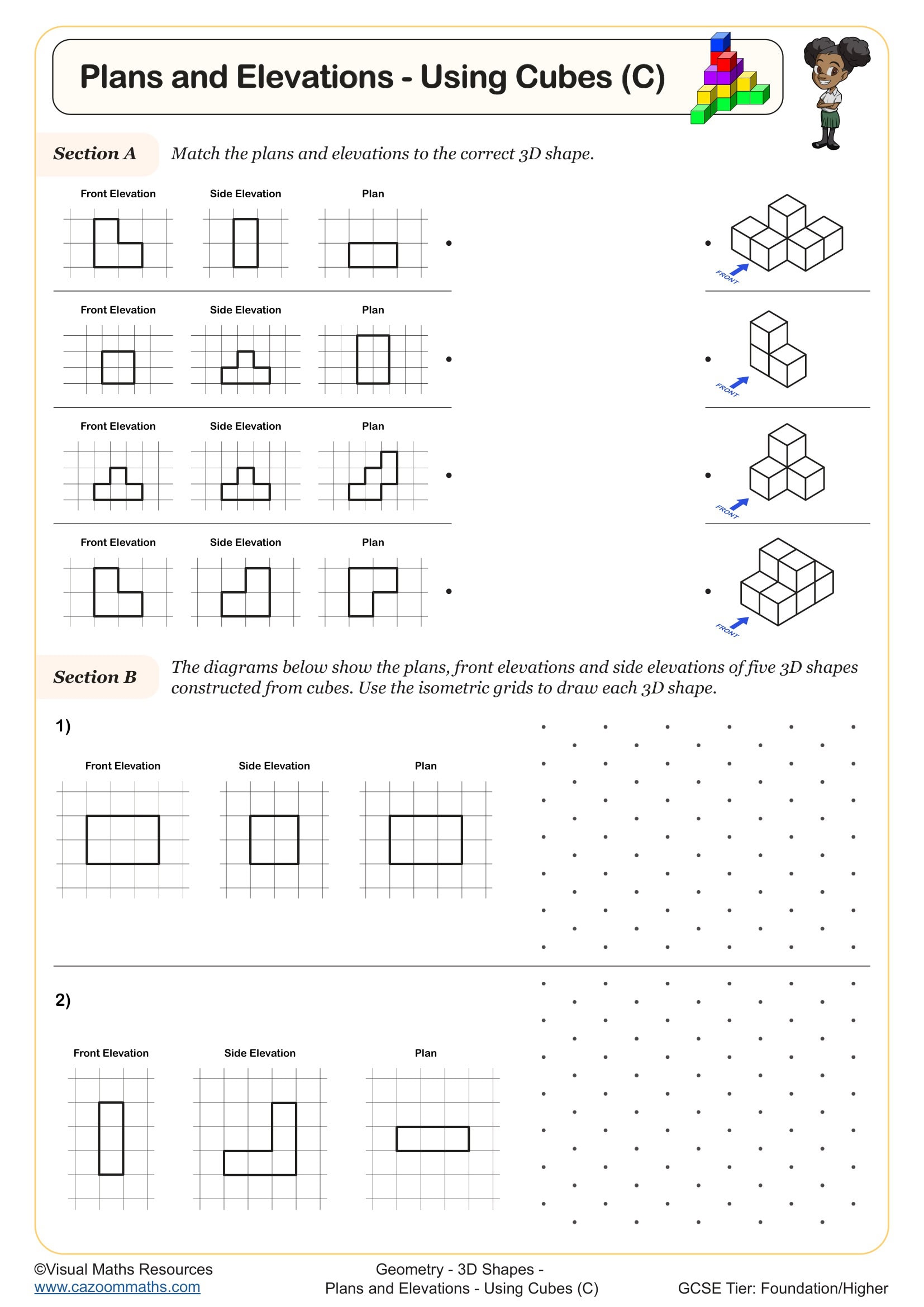

In section A, learners will match images of four 3D shapes with the correct set of elevations and plans.

Then, in section B, pupils will draw 5 3D shapes on isometric grids using their plans and elevations. There are two more worksheets in this series looking at 3D shapes constructed from cubes in our series which make for an excellent introduction to what can be a challenging topic for students who struggle with spatial reasoning.

All worksheets are created by the team of experienced teachers at Cazoom Maths.

Plan and Elevations - Using Cubes (C) Worksheet suitable for Year 10 Students

RELATED TO Plan and Elevations - Using Cubes (C) WORKSHEET

Plans and Elevations (B)

Year groups: 8, 9

Preview of Plans and Elevations (B)

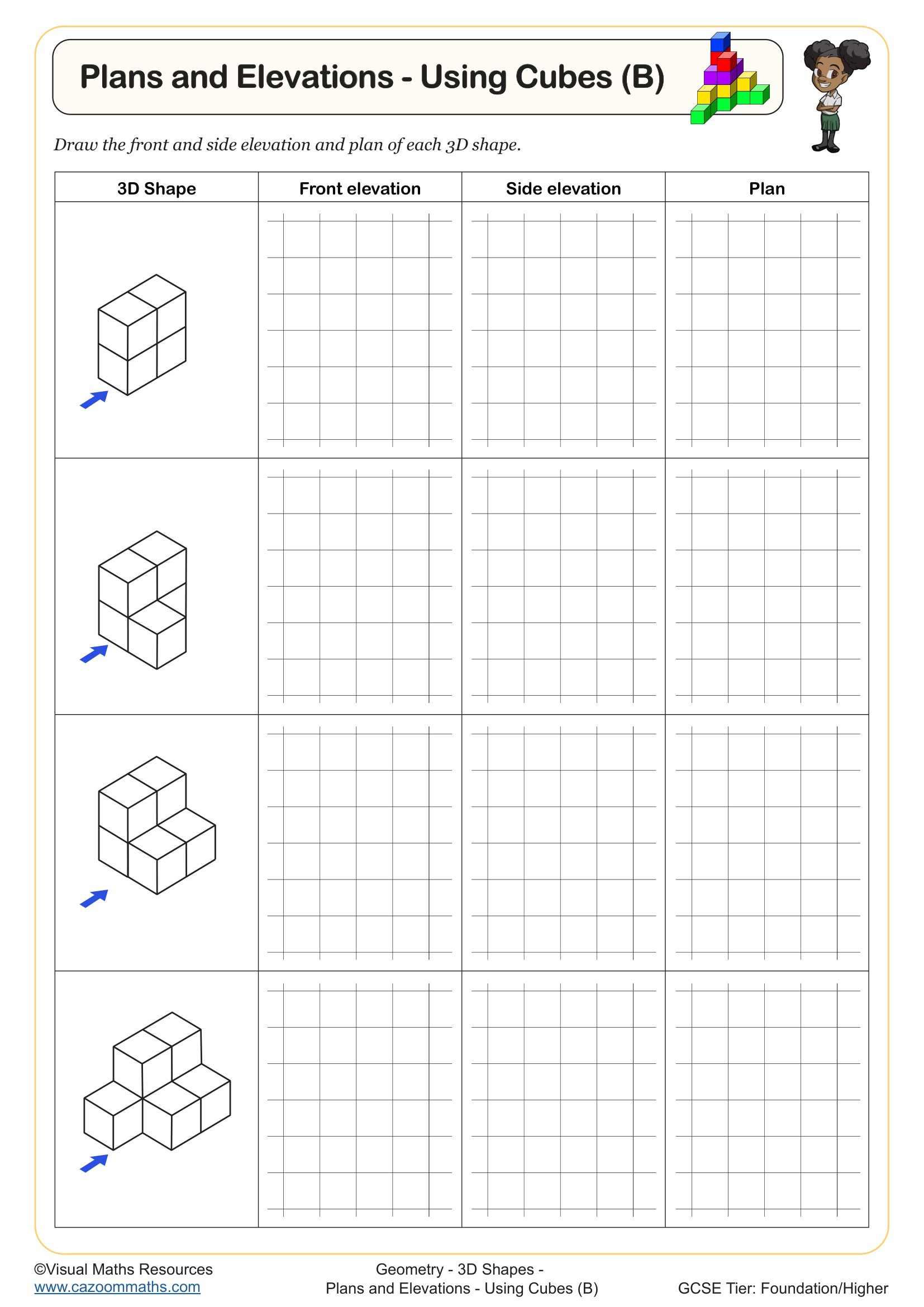

Plan and Elevations - Using Cubes (B)

Year groups: 10

Preview of Plan and Elevations - Using Cubes (B)

Plans and Elevations (C)

Year groups: 8, 9

Preview of Plans and Elevations (C)

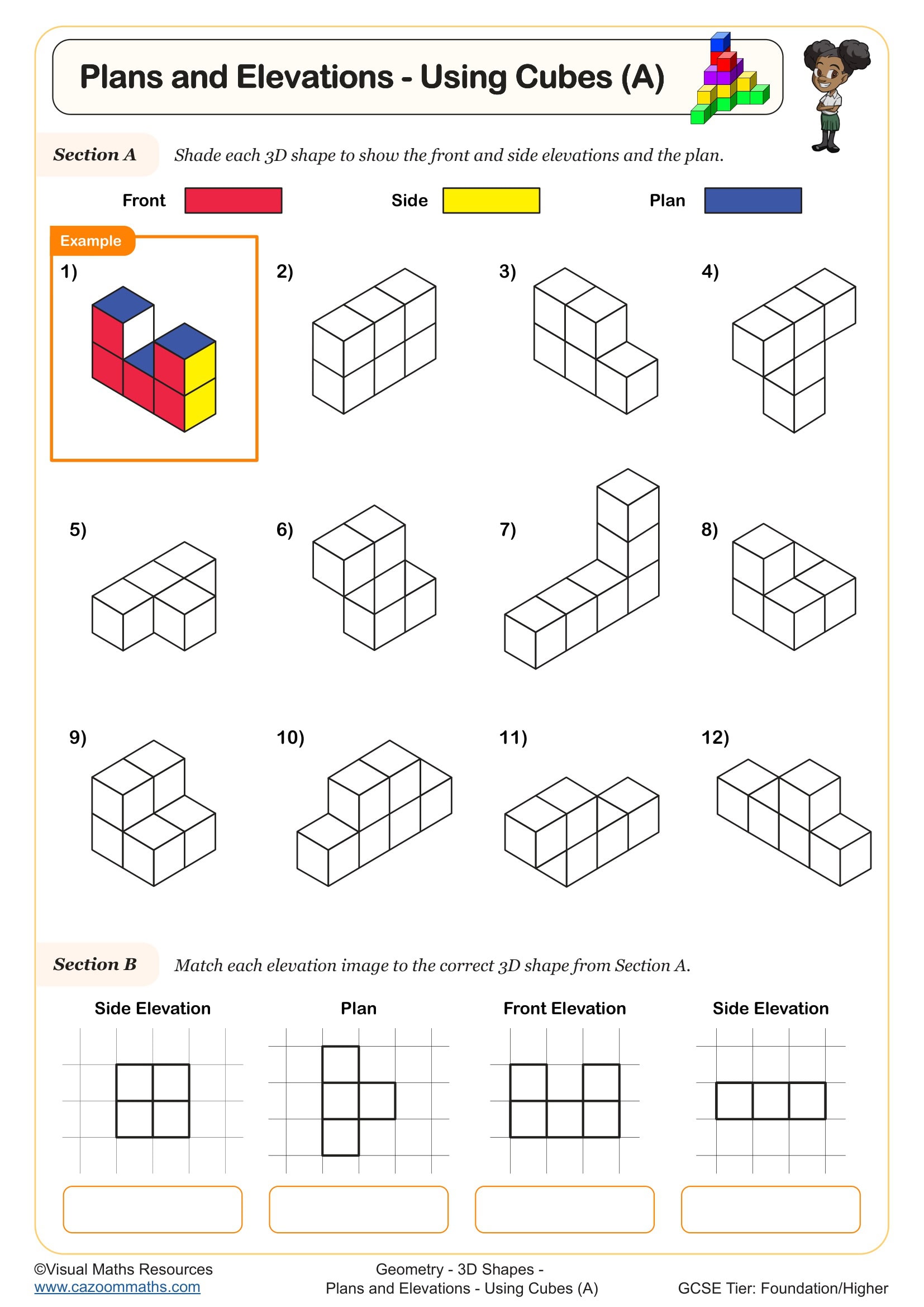

Plan and Elevations - Using Cubes (A)
